Width adjustable ridge cap rolling forming machine

Width adjustable ridge cap rolling forming machine

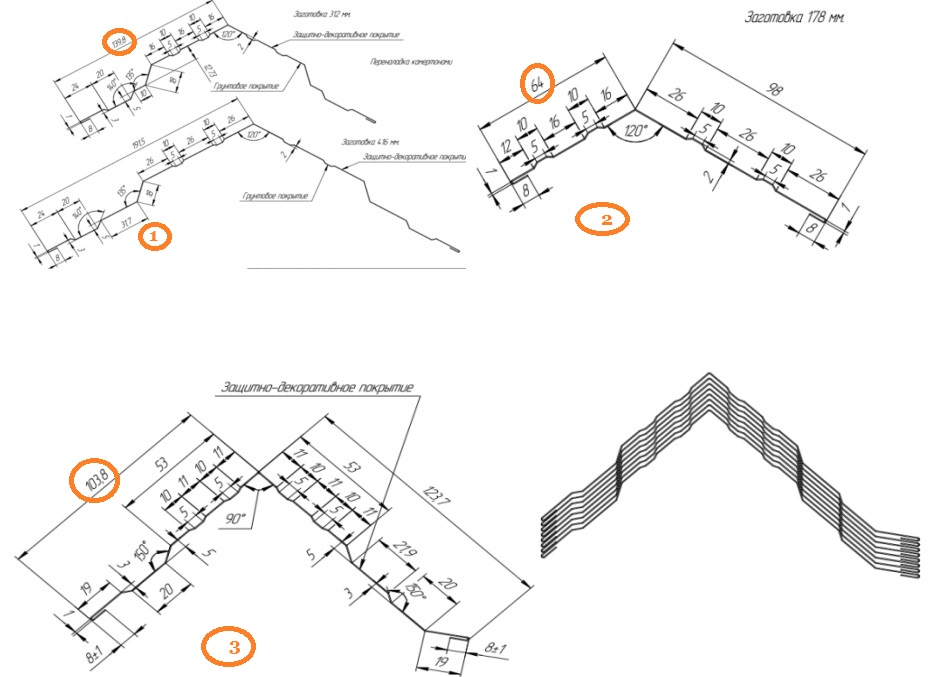

Width adjustable ridge cap rolling forming machine is designed to make the ridge cap in adjustable type in batch fully automatically. The ridge cap acts as a barrier against water infiltration, preventing moisture from seeping into the underlying roofing materials and causing damage. Additionally, it helps to deflect wind-driven rain and snow, reducing the risk of leaks and water-related issues. Here we take the following drawing profiles for your reference:

Metal Ridge Cap Finished Products:

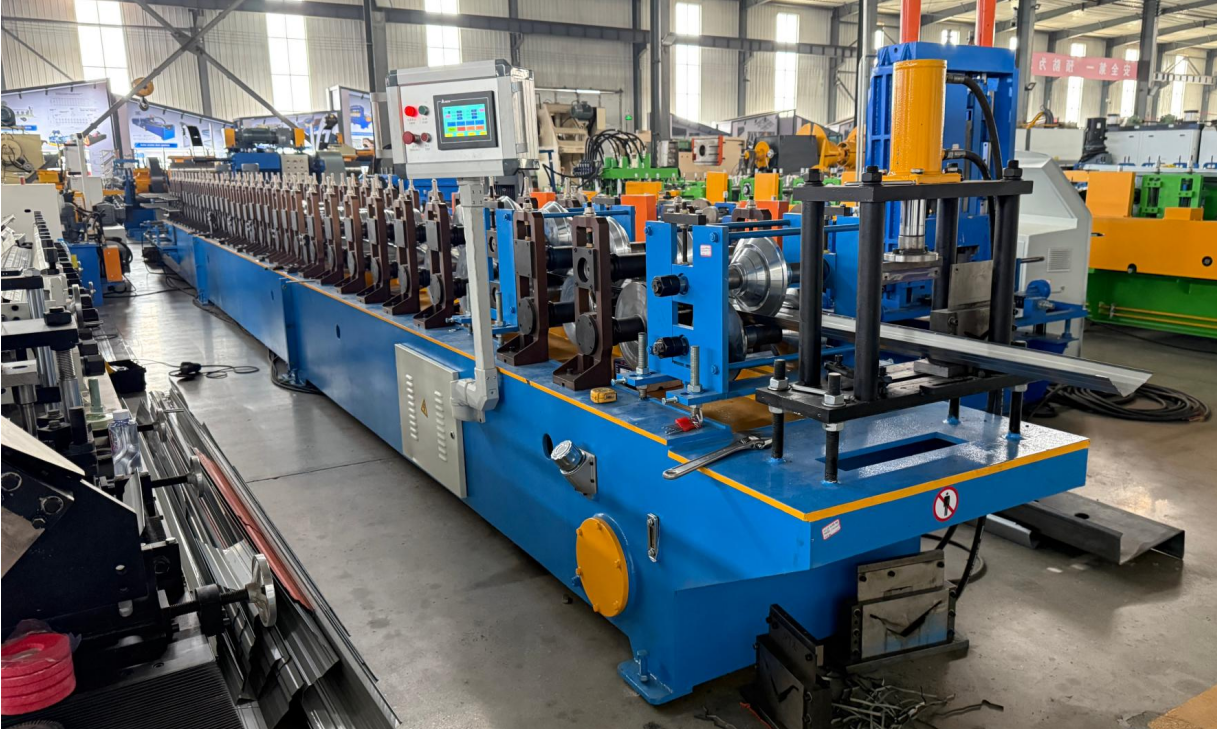

Width adjustable ridge cap rolling forming machine:

How to make the width adjustable for the ridge cap machine?
1.For the first 8 roller stations the width are adjustable by PLC. It is linear by servo motor PLC control.

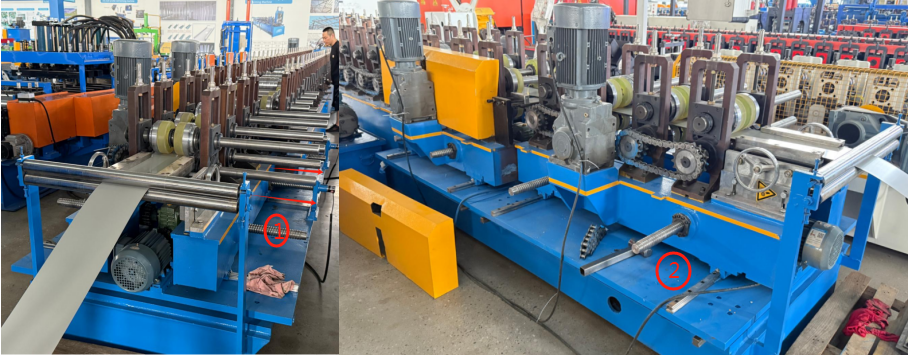

2.For the last several roller stations, you need to adjust by hand.
3.In order to protect the shearing of the coil will not be damaged, we add some rubber rollers at the end of the metal rollers.

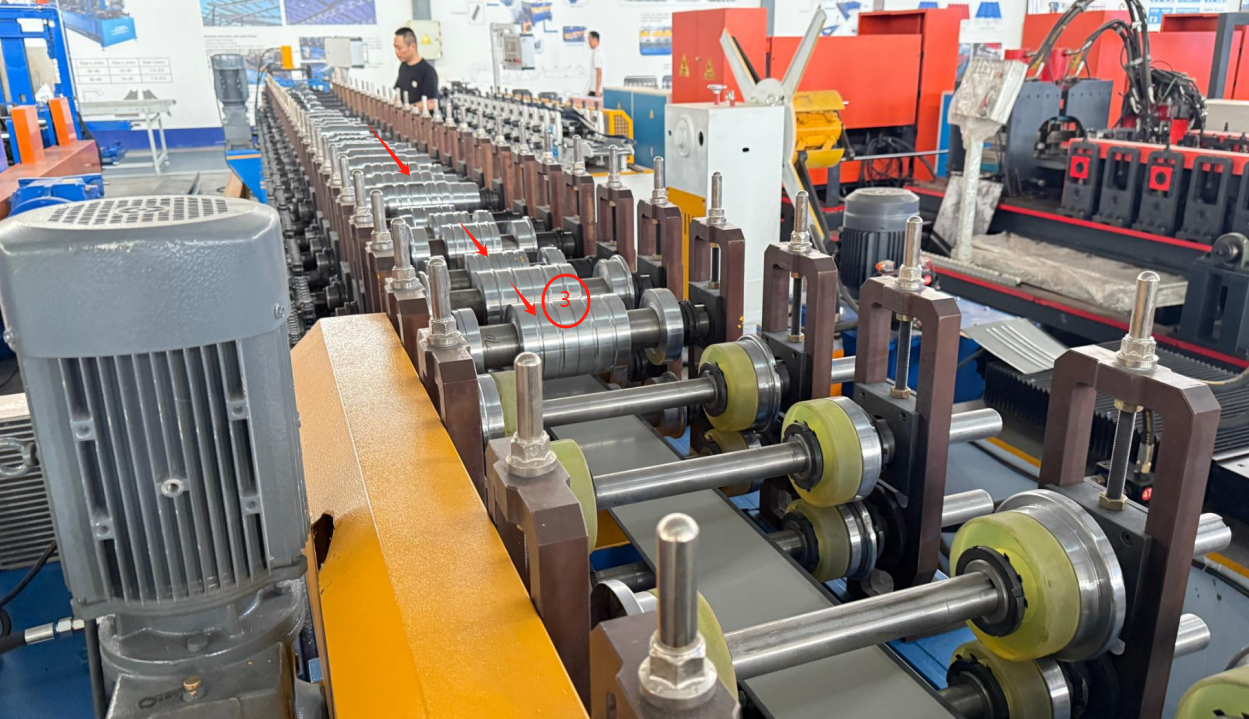

4.The rollers are designed by separated rollers, so the sizes are adjustable for bigger and smaller.

5.Use the molding frame to make sure the machine working stable.
6.Use the GCR12 roller material to make sure the machine more durable.

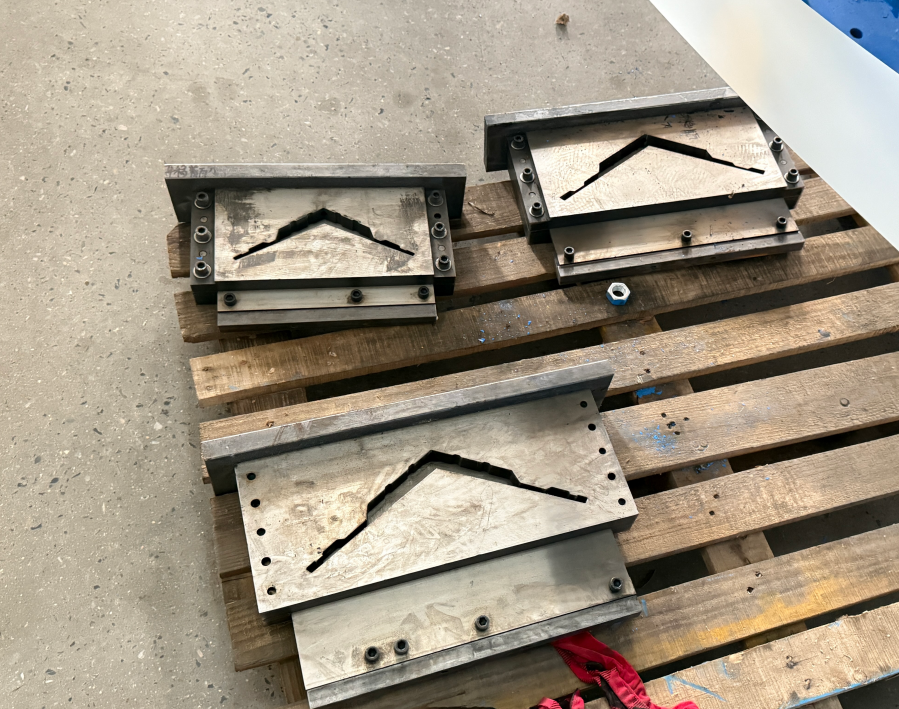

7.As to the shearing part, we design many cutters for different sizes.

Width adjustable ridge cap rolling forming machine working video for your reference:

adjustable ridge cap roll forming machine

steel sheet ridge cap machine

width adjustable roll forming equipment

Width adjustable ridge cap rolling forming machine Images
